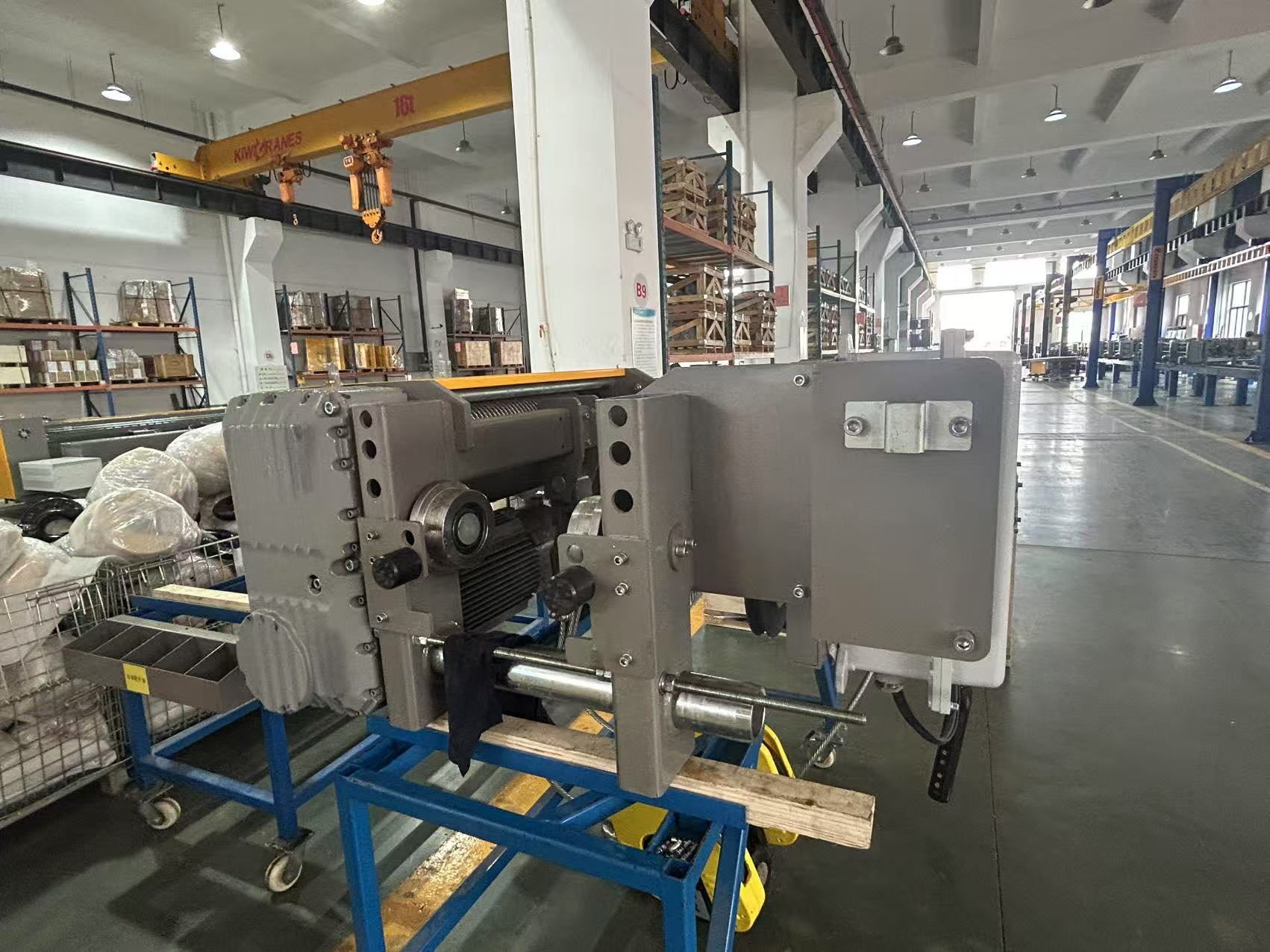

5ton 12m European style single girder wire rope hoist
| model | | VTW-S 5T |
| SWL | t | 5 |
| lifting height | m | 12 |
| lifting speed | m/min | 0.8/5.0 |
| travel speed | m/min | 5-20 |
| power in | V;HZ | 220~460V 50/60Hz |
| FEM(GB) | -- | 2m(M5) |
| lifting motor | power | KW | 1.0/6.1 |
| RPM | n/min | 420/2840 |
| insulation | -- | F |
| production | -- | IP55 |
| duration | -- | 40% |
| rated current | | 5.17/14.20 |
| lift gear ratio | -- | 67.59 |
| drum dia | mm | 190 |
| wire rope | -- | 8-8*26(WS)+IWRC |
| travel motor | power in | KW | 0.4*2 |
| RPM | n/min | 104 |
| insulation | -- | F |
| production | -- | IP55 |
| duration | -- | |
| rated current | A | 2.35 |
| wheel dia | mm | 100 |
1,Lightweight design:
This is one of the core advantages of European hoists. The use of
high-strength materials and optimized structural design (such as
compact reduction gearbox, lightweight shell) significantly reduces
the deadweight of the hoist mainframe and running trolley while
ensuring strength and performance.
Benefits: Reduces the load-bearing burden of the factory frame or
track, reduces the civil construction cost; installation and
maintenance are more convenient; the cross-section requirements of
the crane main beam are reduced, making the whole machine lighter.
2,Compact structure:
The motor, reduction gearbox, drum, lifting limit and other
components are exquisitely designed, reasonably laid out, and the
overall volume is relatively small.
Benefits: Saves vertical and horizontal space, especially suitable
for occasions with limited factory height or compact space; reduces
the swing space requirements of the hoist during operation.
3,High performance and high efficiency:
Lifting speed: Usually equipped with a dual-speed motor (normal
speed + slow speed), for example, normal speed is about 8
meters/minute, slow speed is about 2 meters/minute (the specific
value varies depending on the brand model). Slow speed facilitates
precise positioning.
Running speed: The running speed of the trolley (trolley) is
usually around 20 m/min (higher speed is optional for variable
frequency control).
Motor: A squirrel cage asynchronous motor with high efficiency and
high insulation level (such as F or H) is used, which has low heat
generation and long life.
Gearbox: Hardened helical gear transmission, high precision, low
noise, strong load-bearing capacity, high efficiency and long life.
