    C Track Cable Trolley System For Electric Hoist Traveling 10 Ton

    Ask Lasest Price
    Brand Name : kiwicranes
    Model Number : LD
    Certification : ISO
    Payment Terms : D/A,D/P,T/T,Western Union
    Supply Ability : 10000sets one year
    Delivery Time : 5-8 working days
    Price : USD300-3000/set
    • Product Details
    • Company Profile

    C Track Cable Trolley System For Electric Hoist Traveling 10 Ton

    C-Rail Cable Trolley System For Electric Hoist Traveling

    Comprehensive Guide to C-Track & Cable Trolleys Festoon Systems support conductor cables(flat or round) and hoses (hydraulic and pneumatic applications) for delivering power &control to mobile equipment in a safe, efficient and maintenance free method.The cable trolleys are well guided inside their C-tracks and protected against humidity , dust and icing. Cable trolleys not only deliver power and control to mobile equipment which has reciprocal motion but also support large quantities of data cables including optic fibre travelling independently from the mobile machinery. The relevant control carriers with and without push button lifting are also shown.

    1,Mass production of C-rails, large stock available

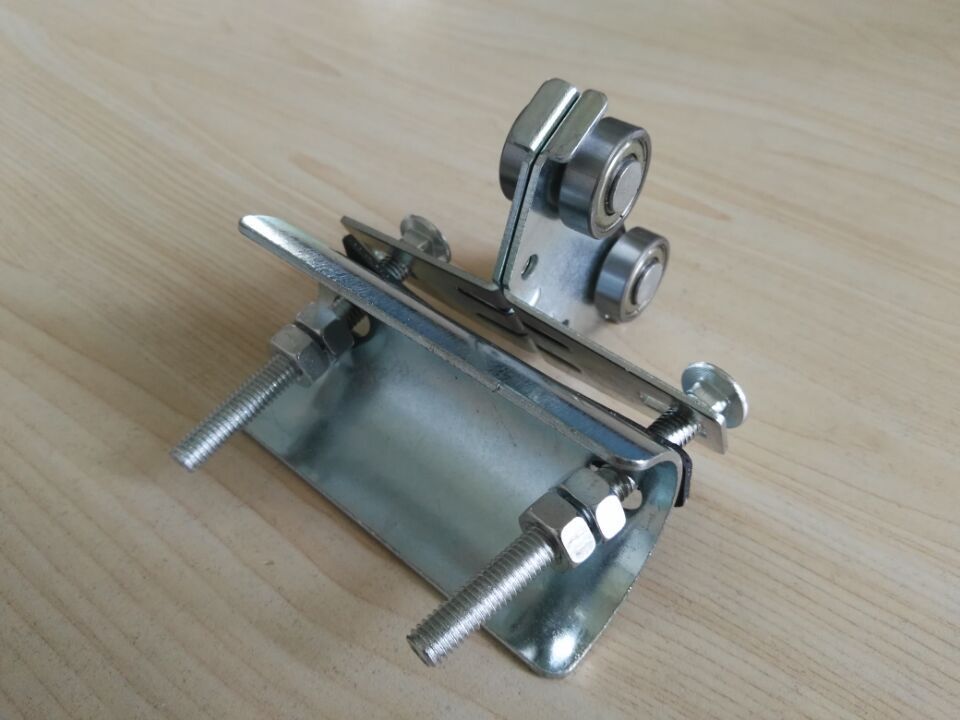

    2,Towing trolley

    3, Middle cable trolley

    4, End cable trolley

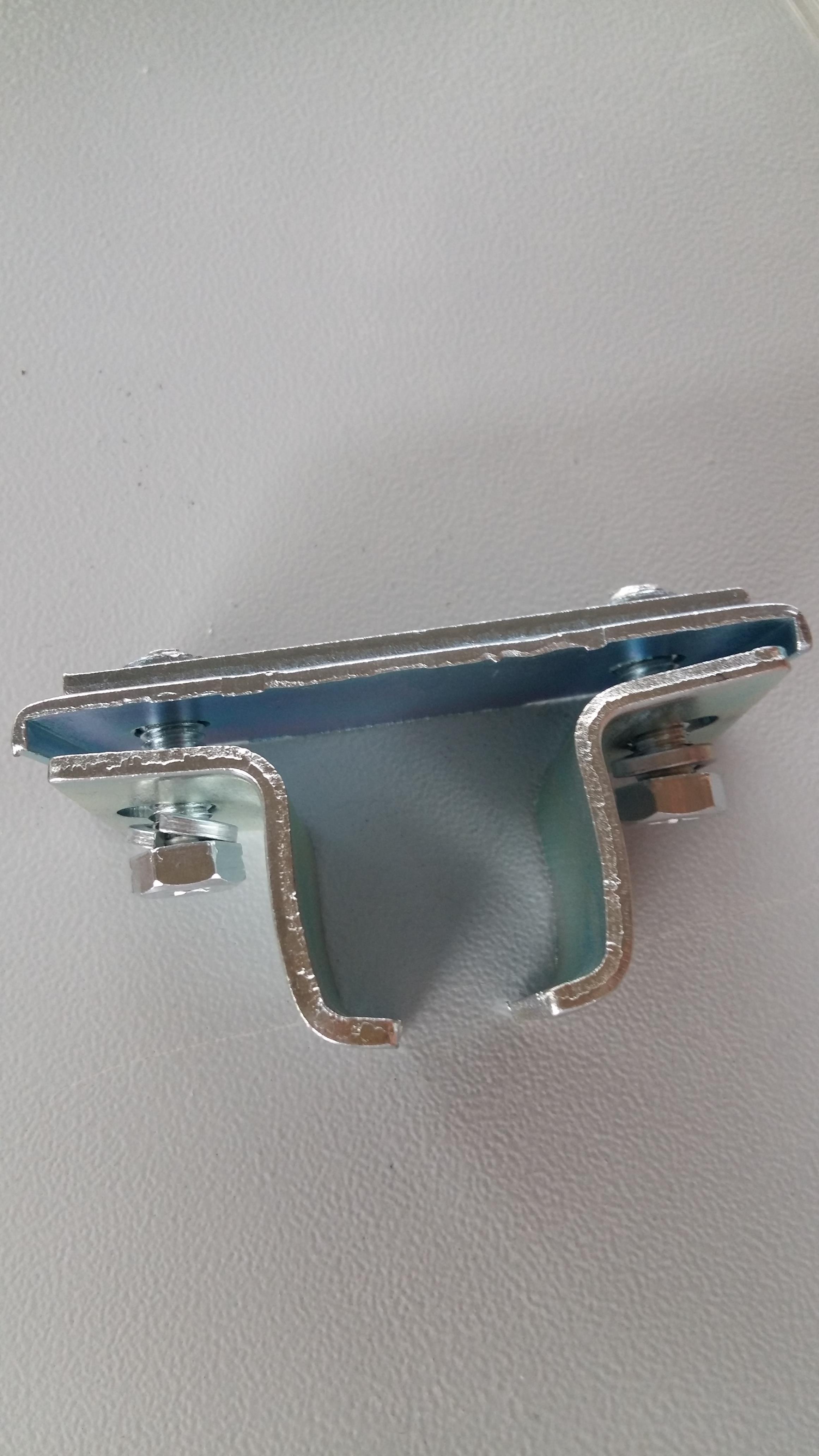

    5, C-track hanger

    6, Joint clamp

    7,Flat cable for cranes traveling

    C-track datas

    TypeC32*30*1.5
    MateriaGalvanized steel
    Weight kg/m1.1
    A32
    B30
    C12
    δ1.5
    Max cable load90kg(spacing 1.2m)
