Enclosed Power Conductor Rail System For EOT Crane 10ton

Enclosed power conductor rail system is a power rail,protected from contact (IP23),The enclosed busbar with the function of preventing accidental impact hazards. It can be used both indoors and outdoors. The structure is an engineering plastic insulating shell that can be loaded with copper wires of different cross-sectional areas. Its rated current value is 35A to 240A. The operation of the collector is guided by a tractor, mainly transmitted by a carbon brush with a spring. The matching rubber dust strip can effectively improve the I protection level of the busbar, and the protection level can reach up to IP43. This series of bus-bars are 3-pole to 16-pole devices. The 56 series is a 3-pole or 4-pole device. The HFP-R type is an arc busbar, which can be made into an arc busbar with a radius greater than 800mm. It has passed the following certifications: ccc, ISo9001 and CE certification.

1,Housing

Color green, plastic housing for 3-4 conductors. Standard section 4 m each bar.Other sections are available.

The ground conductor is identified by yellow color.Phase reversing prevented by design of the collector and housing.

2, Hangers

Standard brackets for powerail attachment to crane girders are available.Powerail with sliding and fix point hangers.

Standard distance between suspension points for indoor and outdoor.Installations space: 1200mm.

Material: galvanized steel

3,Current Collector

25A, 2.5mm²/corex4

40A,4.0mm²/corex4+ 2.5mm²/core×1

0.8m long, longer cables on request.

4, Joint Cap

Fixed with bolted joints and self locking for installation easily.

Material: plastic

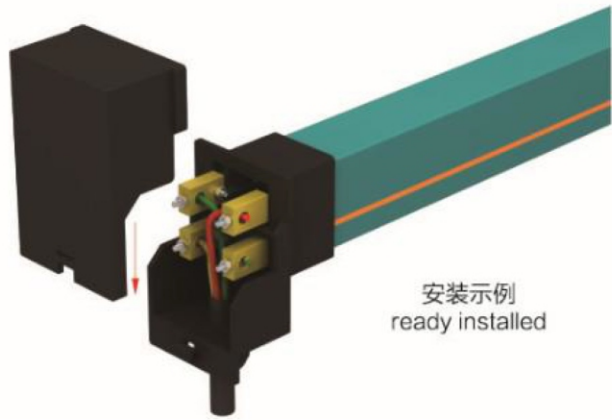

5, End Feed

left and right version.
