Electric Suspension Overehad Crane 5ton Span 9m

Electric Suspension Crane :

An Electric Suspension Crane is an overhead lifting system where the hoist and trolley are suspended from a ceiling-mounted or freestanding runway structure, powered by electricity. It is designed for precise load handling in workshops, warehouses, or production lines. Key features include:

Electric Hoist: Powered by motors for vertical lifting.

Trolley Mechanism: Allows horizontal movement along the suspended runway beam.

Runway System: Typically a single or double girder configuration, fixed to the building structure.

Control: Operated via pendant control, remote, or automated systems.

Applications: Ideal for modular setups, light-to-medium duty cycles, and spaces with limited floor space.

Advantages: Energy-efficient, quiet operation, and adaptable to existing infrastructure.

Under-hung or under-running cranes are designed for flexibility and functionality.

Under running overhead cranes travel on crane runways attached to existing roof structures, which saves you the cost of installing additional crane runway supports. In this way, the entire workshop area is available for production.

It is also possible to employ a bypass control system to enable only certain parts of the factory space to be accessed. The lateral overhangs can be used to extend the travel path of the travelling hoist beyond the span dimension.

1)For main beams of 1 ton or less, H steel beams can be used.

For main beams of 2 tons or more, welded box beams can be used.

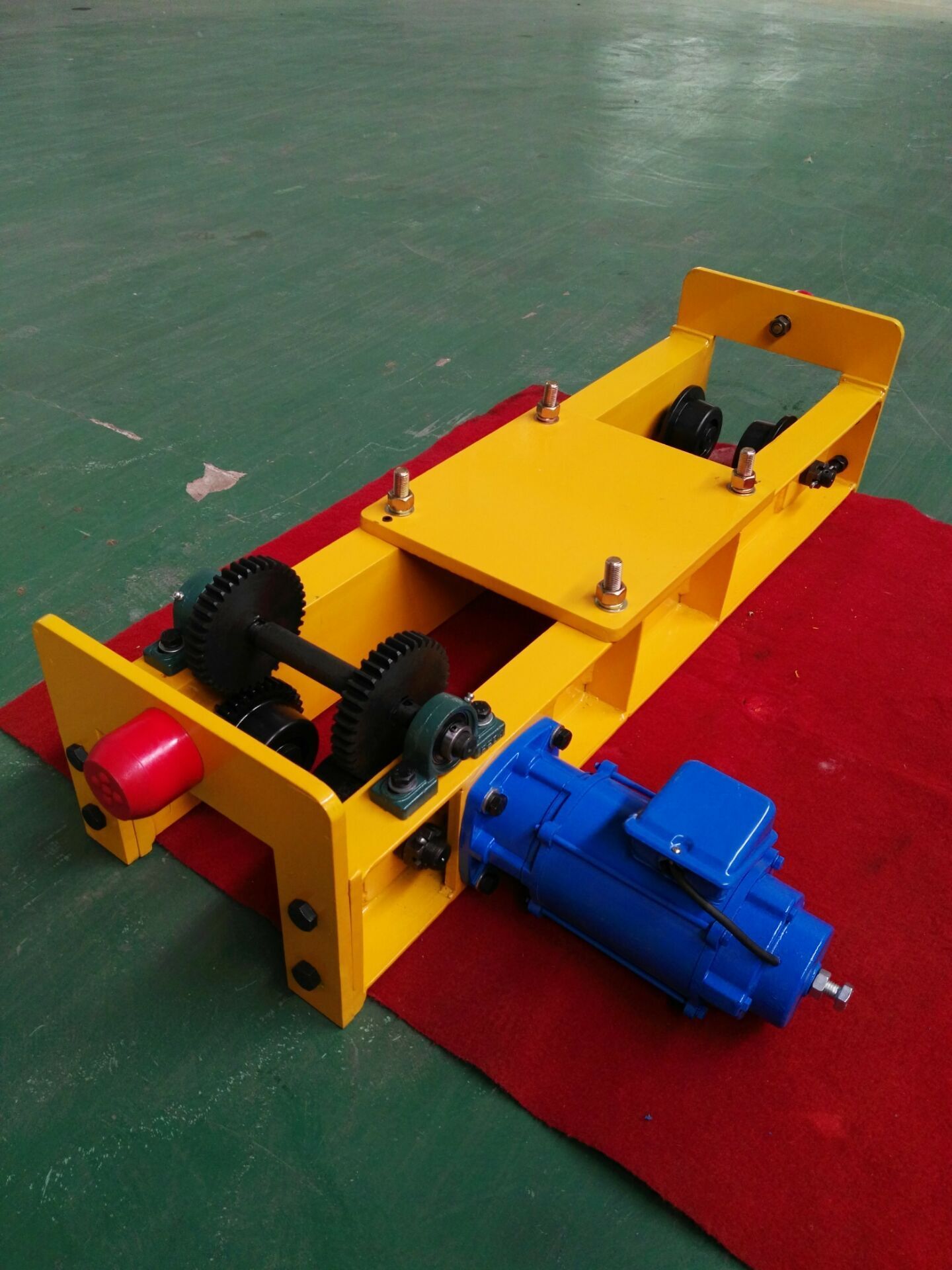

2)crane end carriage:

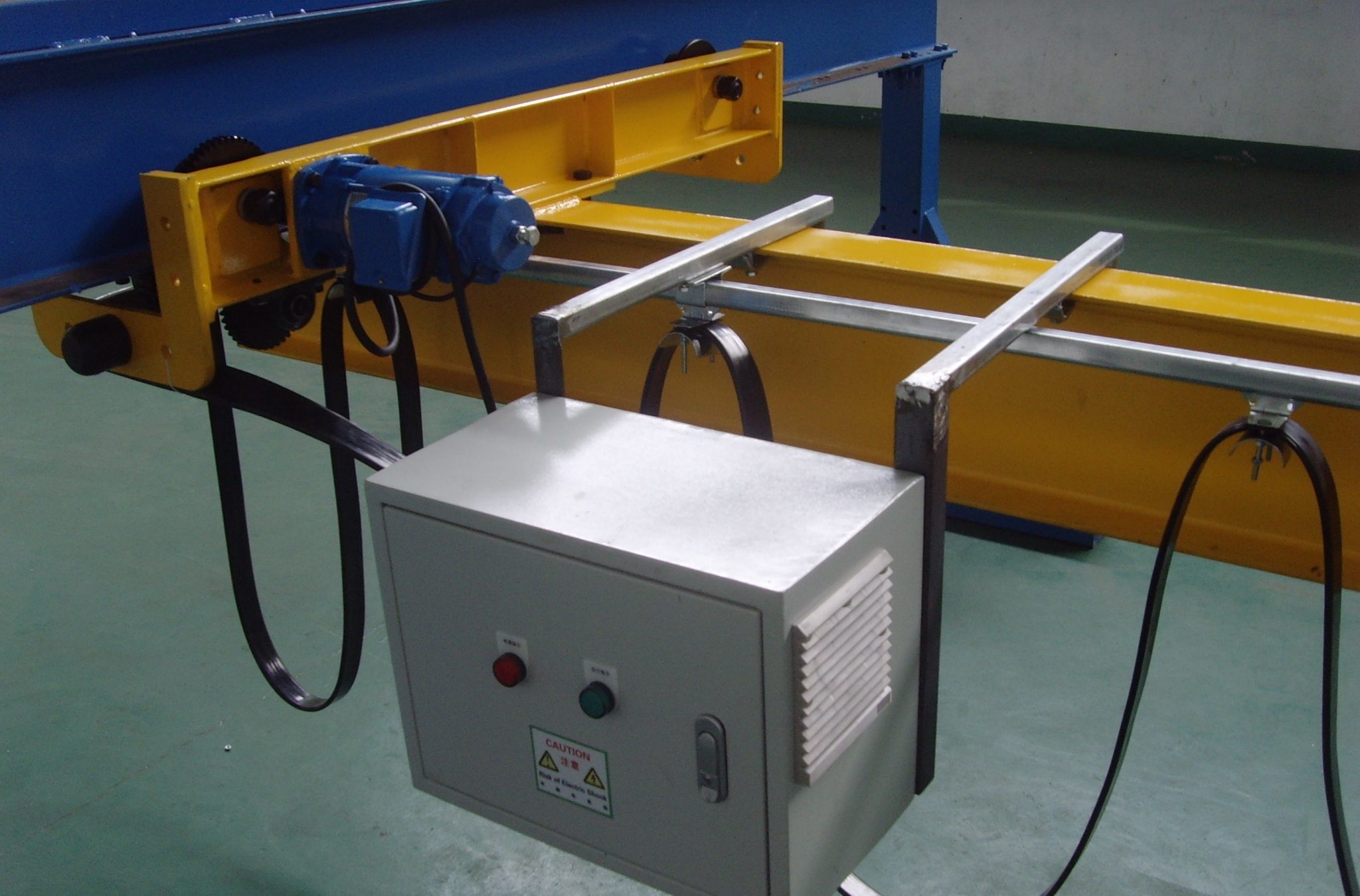

3) cross power cable and VFD control panel

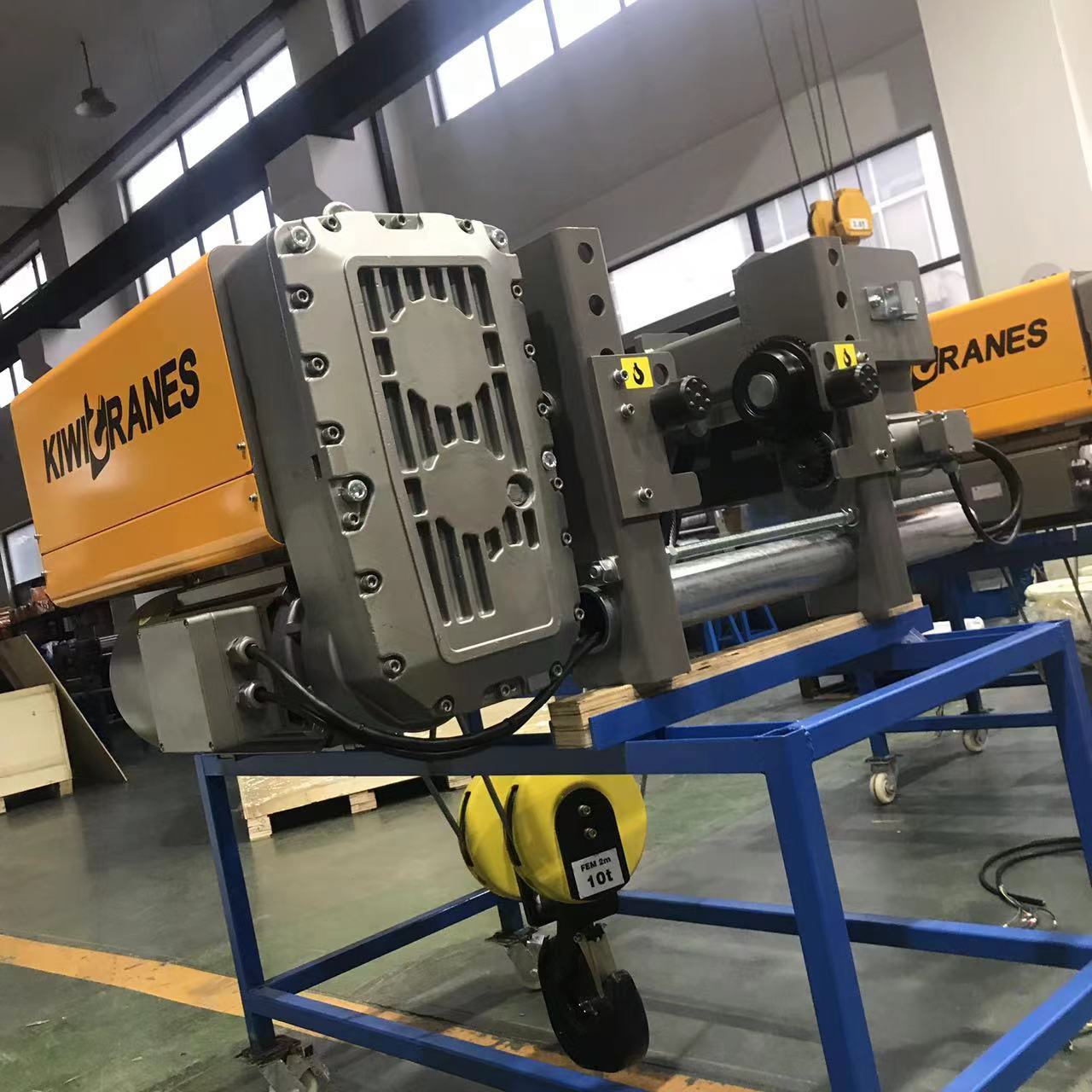

4) electric hoist(wire rope hoist or chain hoist)

Main datas
