    1 Ton Span 10 Meters Electric Overhead Suspension Crane Remote Control

    Ask Lasest Price
    Brand Name : KIWICRANES
    Model Number : LX
    Certification : ISO/CE
    Payment Terms : D/A,T/T,D/P,Western Union
    Supply Ability : 1000 sets one year
    Delivery Time : 20 working days
    Price : USD3000~8000 one set
    • Product Details
    • Company Profile

    1 Ton Span 10 Meters Electric Overhead Suspension Crane Remote Control

    Electric Suspension Overehad Crane 1ton Span 10m

    Electric Suspension Crane :

    An Electric Suspension Crane is an overhead lifting system where the hoist and trolley are suspended from a ceiling-mounted or freestanding runway structure, powered by electricity. It is designed for precise load handling in workshops, warehouses, or production lines. Key features include:

    Electric Hoist: Powered by motors for vertical lifting.

    Trolley Mechanism: Allows horizontal movement along the suspended runway beam.

    Runway System: Typically a single or double girder configuration, fixed to the building structure.

    Control: Operated via pendant control, remote, or automated systems.

    Applications: Ideal for modular setups, light-to-medium duty cycles, and spaces with limited floor space.

    Advantages: Energy-efficient, quiet operation, and adaptable to existing infrastructure.

    1)For main beams of 1 ton or less, H steel beams can be used.

    For main beams of 2 tons or more, welded box beams can be used.

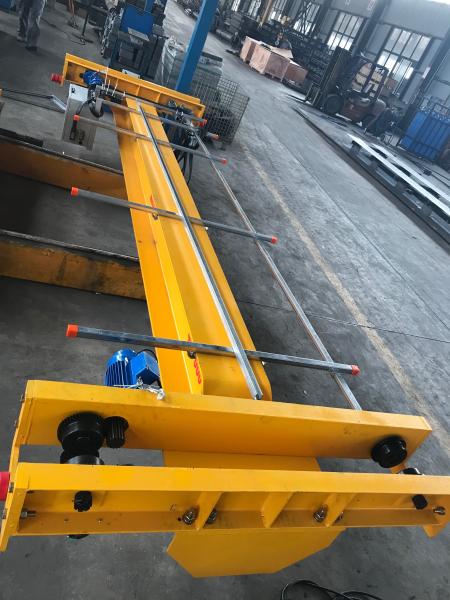

    2)crane end carriage:

    3) cross power cable and VFD control panel

    Main datas

    ParameterSpecification
    TypeElectric Suspension Crane
    Capacity (Lifting Load)1 ton (1000 kg)
    Span10m
    Lifting HeightCustomizable (e.g., 6m, 9m, etc.)
    Lifting Speed5/0.8m/min (standard)
    Trolley Travel Speed20/5 m/min (VFD)
    Bridge Travel Speed20/5 m/min (VFD)
    Power Supply3-phase, 380V/50Hz (or as required)
    Control MethodPendant control / Radio
    Duty ClassFEM 1Am / ISO M3 (Light-Medium Duty)
    Protection LevelIP55 (Dust & Waterproof)
    Safety FeaturesOverload limiter switches, emergency stop
