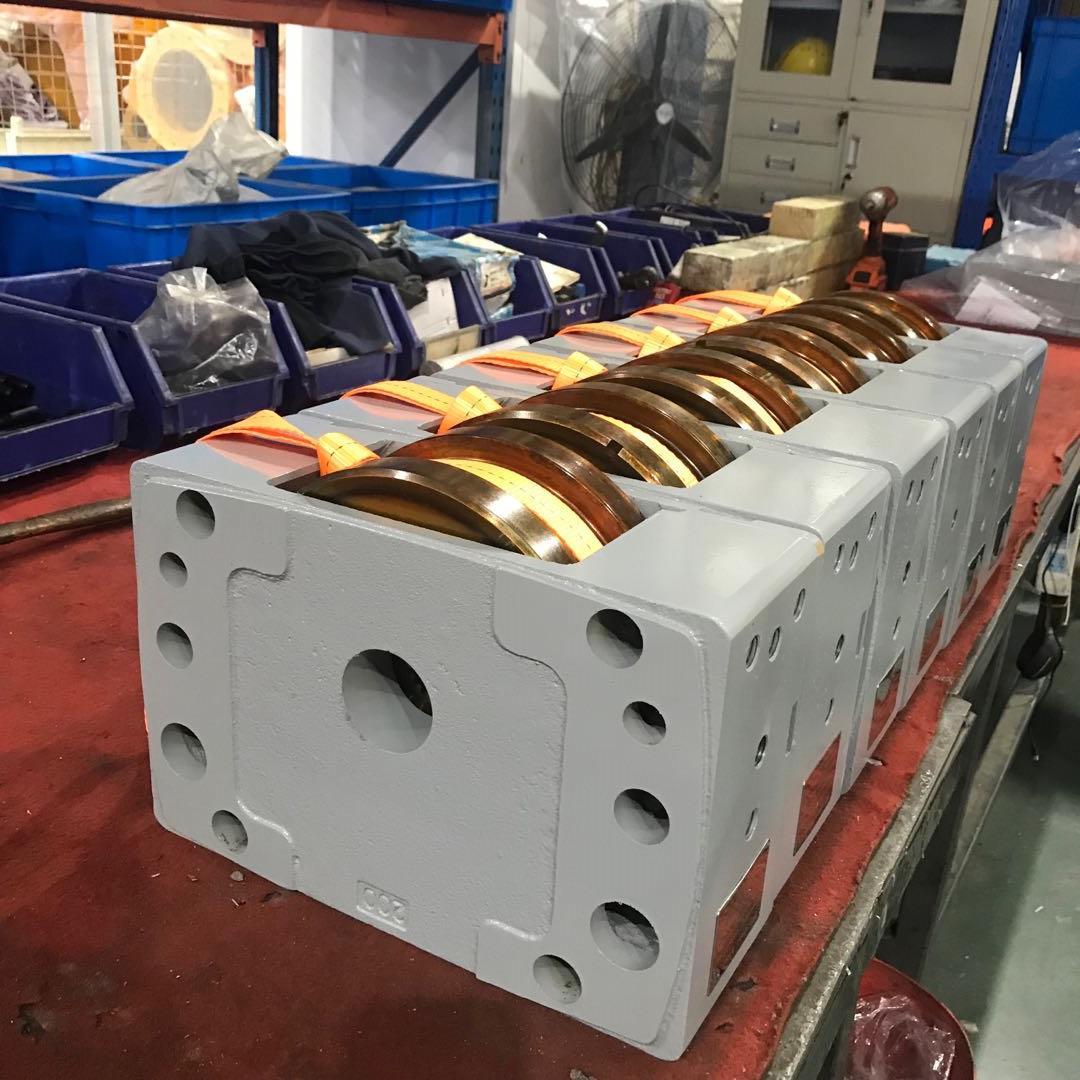

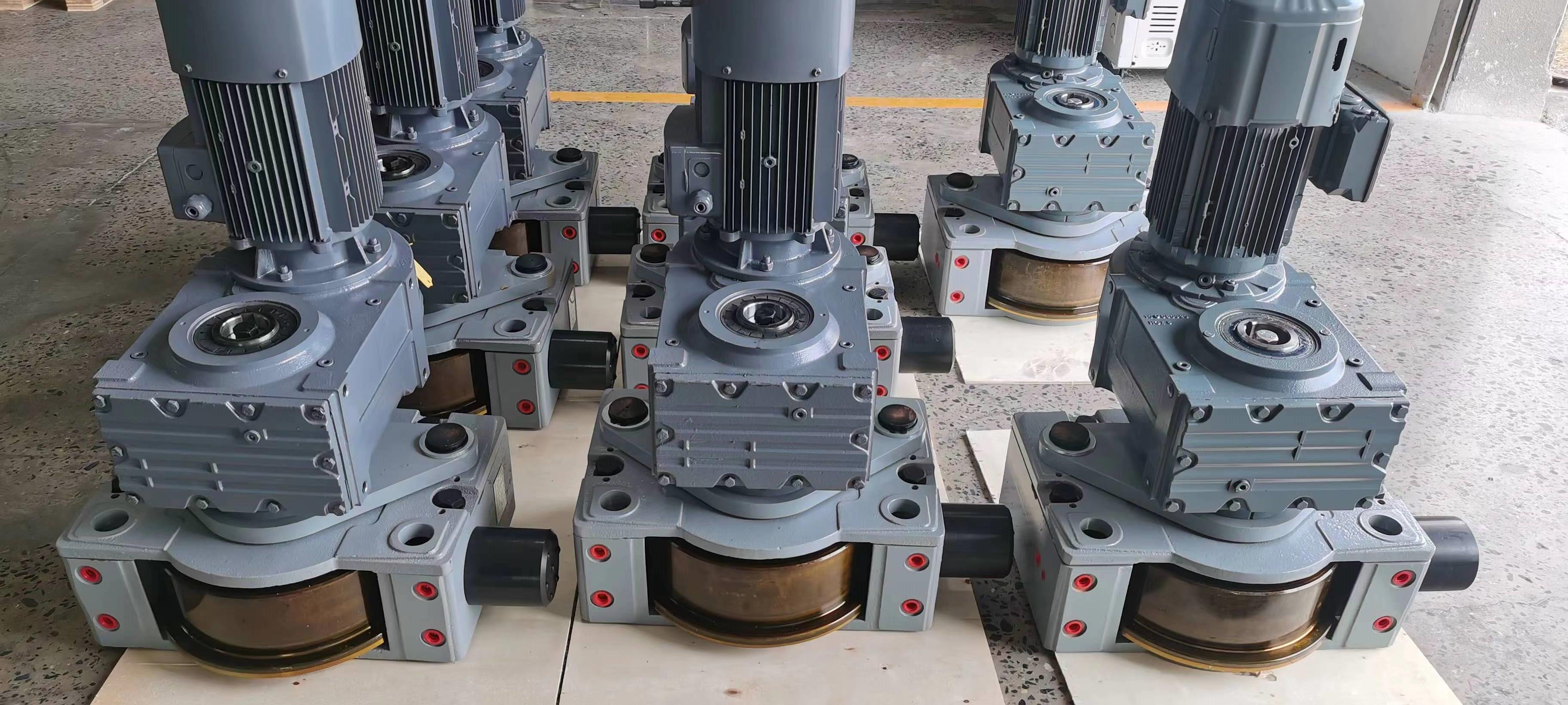

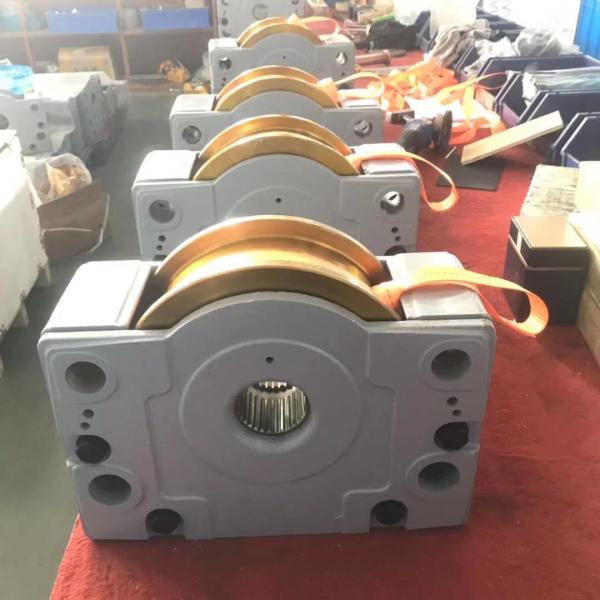

Wheel Block With Drive Motor For Cranes/Gantry Systems/Rail Traveling Transfer Car DRS250

DRS wheel block system from 125mm to 400mm, suitable for loads up to 30000 kg, is designed as a heavy-duty travel unit based on the same principle

Features:

• Most favourable ground clearance conditions with offset or angular geared motors.

• A robust spheroidal graphite cast iron of travel wheel.

• Variable basic design by fitting various travel wheel materials and shapes.

• Protected internal bearing arrangement featuring tapered-roller bearings.

• Minimum maintenance due to bearings lubricated for life with standard ambient conditions.

• High quality bearings are rugged, wearable and rolling easier.

• Travel wheel and bearings can be replaced thanks to bolted housing.

• High installation availability since the housing with top connection does not necessarily need to be removed to replace the travel wheel.

• Travel wheel with flange on both sides,one side or without flange.

• German drive SEW and NORD are optional.
