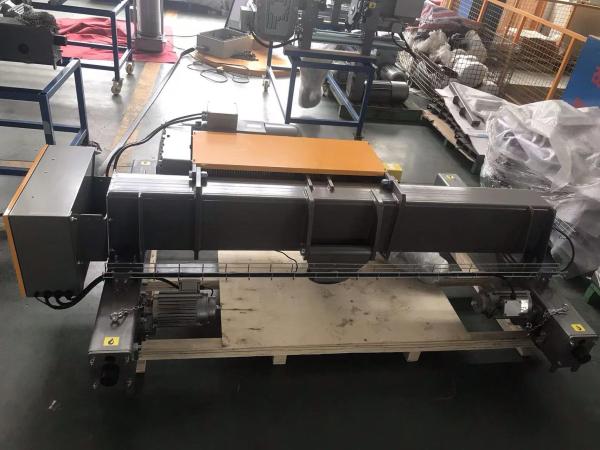

Radio Remote Control Double Girder Electric Wire Rope Hoist 6.3ton

Euro-standard design double beam electric wire rope hoist, conformity of ISO and CE certificate

1. Core parameters
Rated load: 6.3 tons (suitable for small and medium-sized material handling, design redundancy coefficient ≥ 1.25)
Lifting height: 9 meters (standard configuration, can be expanded according to needs)
Working level: M5 (suitable for medium-intensity work, daily average working cycle 2-4 hours)
Lifting speed: 5/0.8 m/min (can be equipped with variable frequency speed regulation, no-load high speed/load low speed switching)
Span range: typical double-beam span 7.5-28.5 meters (box-type main beam + end beam combination structure)

2.Lifting Motor
The compact wire rope hoist is designed according to FEM standards. The lifting drive adopts low noise, high efficiency, easy maintenance, aluminum three-stage parallel shaft gear reduction motor, which is directly installed on the drum. The high-power lifting motor with double-sided safety brake is available for users to choose from two options: double speed and variable speed. Chinese brand and SEW brand for option.

3. Wire Rope Drum
The drum is directly connected to the reducer, which makes the start-up smoother. One end of the drum is connected with the lifting reducer and motor, and works with the suspension device through the wire rope; the other end is equipped with a height limit device.The wire rope drum is equipped with a rope guide as standard to reduce wire rope damage during operation and extend the service life of the wire rope.

4. Hook Block
The hook is forged with special steel for hooks, and is connected to the outer shell through a thrust ball bearing through the hook crossbeam, so that the hook can operate freely. It is a double pulley type.

5 .Electrical Panel
The electrical device of the hoist consists of an electrical control box, a frequency converter, a contactor, a circuit breaker, an overweight limiter, a height limiter, a push button switch, a limiter and connecting wires. Inverter can be Chinese brand, Schneider, ABB, or ther brand
